Summary:

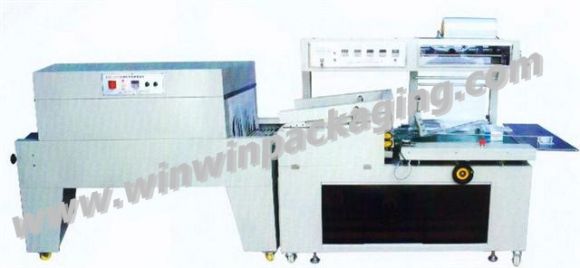

QL5545-2 Automatic L-type sealer is developed for automatic operation. It is able to be integrated with production line. Objects are fed by conveyor and cut automatically. PLC program control with LCD touchscreen display. Have protection device for cutting head in order to protect operator. Adopt stick-proof heating wire to cut and seal film. No smoking of film.
Specification:
Model QL5545-2
Power source 380V/3PH, 50-60Hz
Power 1.5 Kw
Max. Sealing size L550*W450*H120 mm
Capacity 20-30 packs/min
Film type Center-foled polyolefin (POF) film
Max. film size ?280*W530
Air compressor 0.5Mpa (5 bar)
PLC SIEMENS
Operation interface Colorful touchscreen display
Machine material Stainless steel
Machine dimension L1600*W770*H1450 mm
Weight 300 Kg
Model BS-D450
Power source 380V/3PH, 50-60Hz
Power 7 Kw
Tunnel size L1200*W450*H220 mm
Conveyor speed 0-15m/min
Conveyor Chains with rotating silocon coated rods
Machine material Stainless steel
Machine dimension L1600*W600*H1260 mm
Weight 210 Kg
