Overview
Possible to clean 6"~12" wafer
Vibration at 1.6MHz is capable of removing more mocroscopic particles.
The horn does not allow generation of metallic lons.
The best solution for point - of - operation cleaning needs.
Easy to install to existing production line.

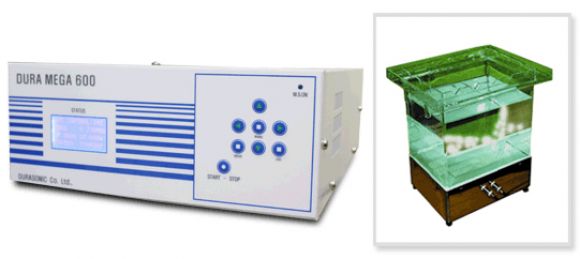

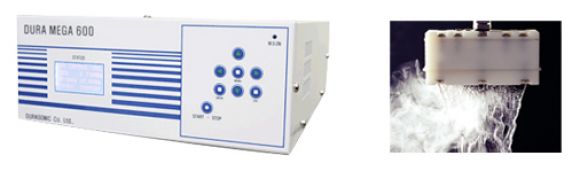

Specification - Megasonic Unit
Model Dura 1MQ
Oscillation Frequenc 1MHz 1.6MHz
Power Supply AC 200-240V AC 100-110V
Ambiennt Temperature Limit 70c
Ambient Humidity 0-80%
Remote Control Provided (Relay or PLC contact)
Display LCD Display
Dimension(mm) 210(W)*250(L)*130(H)
Weight 3.5kg
Features Robust structure design, Dry operation precention signal terminal

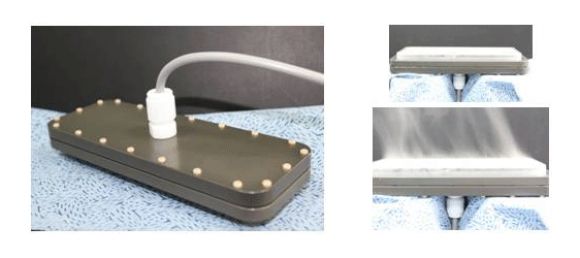

Specification - Spot Unit
Type ULMSS-1
Effective cleaning width 4*1
Nozzie dimension(W*L*H mm) 30*55*80
Nozzle weigh 0.6kg
Water flow rate 400-800cc/min
Output power 40W
*Custom spec size will also be available upon customer request
