เครื่องอ่านบาร์โค้ด Symbol LS7708 Laser Corded Presentation high-volume scanning environments, suc D

รายละเอียดสินค้า

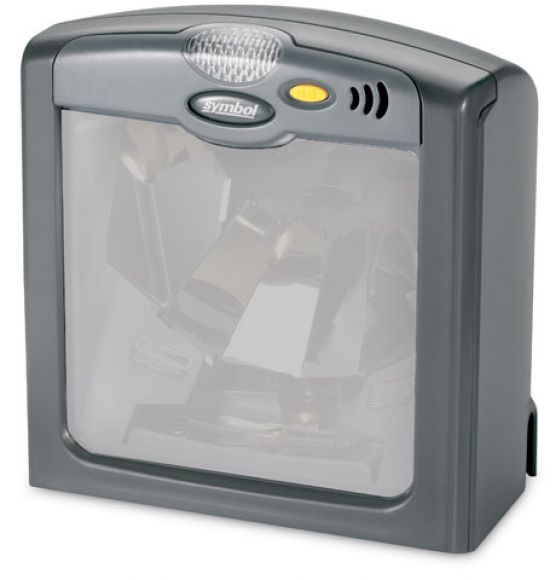

เครื่องอ่านบาร์โค้ด Symbol LS7708 Laser Corded Presentation high-volume scanning environments, suc Details Symbol LS7708 General Purpose Presentation Scanner Find the right scanner Symbol LS7708 General Purpose Presentation Scanner The LS7708 scanner provides quick, accurate scanning, helping users save both time and money. Ideal for presentation and swipe scanning, the device combines the ease of hands-free with the versatility of handheld scanning. Its intuitive design, large scanning window and flexible operation can make check-out faster and more efficient, freeing up employees to focus on customer service. Designed to stand up to the toughest and busiest environments, is scanner is a cost-effective solution for medium- to high-volume retailers. Rastering scan pattern Maximizes first-pass read rates and even reads truncated bar codes. GS1 DataBar decoding Supports new, GS1 DataBar bar codes to future-proof your investment. Multi-interface capability Allows migration to other hosts with the switch of a cable. Universal cables Saves money by using one cable across the Motorola product line. Scan stitching Improves first-pass read rate and increases productivity. Electronic article surveillance (EAS) Eliminates the need to de-activate security tag in a separate step, saving time. Remote scanner management (RSM) Reduces total cost of ownership by enabling remote, network-based device management. PC programming (123Scan) Allows for easy programming and set up ? ideal for large installations. Secondary scanner port Connects to secondary scanner for scanning heavy or oversized merchandise. Automatic sleep mode Reduces power demand and increases life of the scanner. PHYSICAL CHARACTERISTICS Color Twilight black Corded Yes Dimensions 6.3 in (16 cm) H x 5.98 in (15.2 cm) W x 3.73 in (9.5 cm) D without stand Hands-free Yes Power source Host power or external power supply; depends on host type Voltage and current1 5.5 VDC to 4.75 VDC Typical/Maximum voltage: 390mA/500mA Weight Scanner only: 2 lbs. (907 g) PERFORMANCE CHARACTERISTICS Decode capability 1D, See data sheet for full list of supported symbologies Depth of field 0 - 10.0 in (0 - 25.4 cm) @ 13 mil (100% UPC/EAN) Interfaces supported IBM, Keyboard wedge, RS-232, Synapse, USB Minimum resolution2 25% minimum reflective difference
 5 mil Scan pattern Omni-directional, Rastering Technology Laser NOTICES AND DISCLAIMERS Notices and Disclaimers3 See footnote. REGULATORY SPECIFICATIONS EMC EN 55024, EN 61000-3-2, EN 55022, ICES 003 Class B, EN 61000-3-3, FCC Part 15 Class B Electrical Safety UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 Environmental RoHS Directive 2002/95/EEC Laser Safety4 IEC 60825-1, 21CFR1040.10, EN 60825-1 USER ENVIRONMENT Ambient light immunity Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor and Sodium Vapor: 450 Ft Candles (4,844 Lux) Sunlight:8000 Ft Candles (86,111 Lux) Operating temperature 32? to 104?F (0? to 40? C) Storage temperature -40? to 158?F (-40? to 70?C) WARRANTY Scanner warranty 2 years (24 months) from date of shipment. See full warranty for details. 1 Does not include cable. 2 Refers to 100% UPC bar code (80% contrast) located 4 in./10 cm. from the scanner nose. 3 Specifications are subject to change without notice. NOTICE: Repairs of this product may require the use of Motorola proprietary parts (and/or Motorola proprietary information). Motorola will sell these parts (and provide this proprietary information) only to end-user customers for self-service. It is Motorola's policy not to sell these parts to third-party service providers and not to allow a third-party service provider to act as an ordering or receiving agent for the parts necessary to repair this product. Applicable in the U.S. For all other countries, please contact your Motorola account manager or the local Motorola Customer Service representative in your area for further details.
