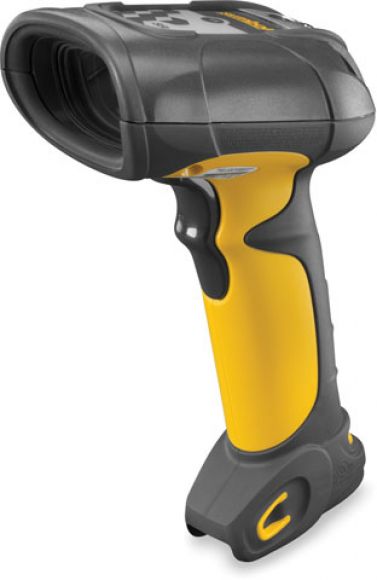

เครื่องอ่านบาร์โค้ด DS3508 Series of Rugged 1D/2D Imager Rugged High-performance, omni-directional D

รายละเอียดสินค้า

เครื่องอ่านบาร์โค้ด DS3508 Series of Rugged 1D/2D Imager Rugged High-performance, omni-directional Details Motorola DS3508 Series of Rugged 1D/2D Imager Scanners Find the right scanner Motorola DS3508 Series of Rugged 1D/2D Imager Scanners The DS3508 Series of rugged, omni-directional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments. Engineered with breakthrough digital imaging technology, this scanner family delivers extremely fast and accurate data capture of 1D and 2D bar codes, images and direct part marks (DPM), and supports Item Unique Identification (IUID). The DS3508 Series is available in a number of models to meet diverse data capture needs: DS3508-SR: 1D/2D bar codes; image capture/transfer DS3508-HD: 1D/2D bar codes and optimized to capture very small, high density 2D bar codes; image capture/transfer DS3508-DP: 1D/2D bar codes; DPM marks; IUID support; image capture/transfer Ability to read both 1D and 2D bar codes Increases productivity by providing one device that can read all industry-standard bar codes Powerful 624 MHz processor, fast sensor shutter speed and patent pending fast pulse illumination Superior performance on 1D and 2D bar codes, improving productivity in a wide variety of applications IUID-enabled (DS3508-DP only) Ability to understand IUID constructs, and automatically separate and send the required information to your application Ability to capture high density bar codes (DS3508-HD only) Increases productivity by enabling users to read high-density 2D bar codes in addition to all industry-standard bar codes Ability to read a wide variety of DPM marks (DS3508-DP only) Enhances quality processes and improves lifetime product traceability Exceptional motion tolerance Enables extraordinary scanning speed for all bar codes, increasing throughput and productivity ? regardless of application Unique aiming pattern Bright central laser dot ensures quick, accurate scanning -- even in bright sunlight Omni-directional scanning Speeds reading time by eliminating the need to line up the bar code with the scan line Rugged design withstands multiple 6.5 ft./2 m drops to concrete Ensures maximum reliability with less downtime resulting from accidental drops IP65-rated sealing Protects against water and dust for reliable performance in harsh industrial conditions Integrated image capture and transfer capabilities Reduces the costs associated with operating and maintaining multiple devices by integrating the technology needed for image capture and transfer Multiple on-board interfaces and universal cable set Ensures flexible connectivity with different hosts; enables easy upgrading of hosts and cable replacement; provides investment protection Bright LED, beeper with adjustable volume and vibrating pager motor Multiple confirmation modes for positive user feedback in noisy environments Advanced data formatting Eliminates costly modifications to the host software Supports 123Scan2 scanner configuration tool Enables rapid and easy customized set-up through a free, wizard-based PC software tool Supports RSM (Remote Scanner Management) Lowers IT expenses and TCO by enabling remote management from a central location PHYSICAL CHARACTERISTICS Color Twilight black, Yellow Dimensions 7.34 x 4.82 x 2.93 in. (18.65 x 12.25 x 7.43 cm) H x W x D Handheld Yes Power source Host power or external power supply; depends on host type Voltage and current1 5 volts +/- 10%; Operating Current: 330 mA (average) Weight 11.85 oz. (336 g) PERFORMANCE CHARACTERISTICS Decode capability 1D/2D/PDF417, See data sheet for full list of supported symbologies, DPM Depth of field .90 in. to 15.10 in. (2.29 cm to 38.35 cm) on 13 mil (100% UPC/EAN); see spec sheet for complete information Interfaces supported IBM, Keyboard wedge, RS-232, Synapse, USB Minimum resolution2 640 x 480 Pitch3 +/- 60 degrees from normal Roll (Tilt) 4 +/- 360 degrees from normal Scan pattern Omni-directional Skew (Yaw)5 +/- 60 degrees from normal Technology Imager NOTICES AND DISCLAIMERS Notices and Disclaimers6 See footnote. IMAGING CHARACTERISTICS Image resolution (pixels) 640 x 480 REGULATORY SPECIFICATIONS EMC EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 Electrical Safety UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 Environmental RoHS Directive 2002/95/EEC Laser Safety7 EN 60825-1, IEC 60825-1, 21CFR1040.10 USER ENVIRONMENT Ambient light immunity Incandescent ? 150 ft. candles (1,600 LUX) immunity: Sunlight ? 8,000 ft. candles (86,000 LUX) Fluorescent ? 150 ft. candles (1,600 LUX) Mercury Vapor ? 150 ft. candles (1,600 LUX) Sodium Vapor ? 150 ft. candles (1,600 LUX) Immune to direct exposure to normal office and factory lighting conditions, as well as direct exposure to sunlight Drop specifications Unit functions normally after repeated 6.5 ft./2 m drops to concrete Environmental sealing IP65 Operating temperature -4? to 122? F/-20? to 50? C Storage temperature -40? to 140? F/-40? to 60? C WARRANTY Scanner warranty 3 years (36 months) from date of shipment. See full warranty for details. 1 Does not include cable. 2 Refers to 100% UPC bar code (80% contrast) located 4 in./10 cm. from the scanner nose. 3 Pitch: Controlled by dropping or raising the wrist 4 Roll (Tilt): Controlled by rotating the wrist clockwise or counterclockwise 5 Skew (Yaw): Controlled by rotating the wrist from left to right or vice versa 6 Specifications are subject to change without notice. NOTICE: Repairs of this product may require the use of Motorola proprietary parts (and/or Motorola proprietary information). Motorola will sell these parts (and provide this proprietary information) only to end-user customers for self-service. It is Motorola's policy not to sell these parts to third-party service providers and not to allow a third-party service provider to act as an ordering or receiving agent for the parts necessary to repair this product. Applicable in the U.S. For all other countries, please contact your Motorola account manager or the local Motorola Customer Service representative in your area for further details. 7
