เครื่องอ่านบาร์โค้ด Mobile MC9090-G Handheld Mobile Computer Details

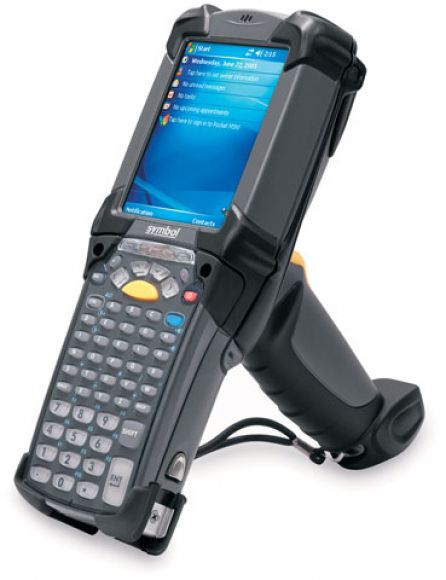

MC9090-G Handheld Mobile Computer
Designed for workers inside your four walls, the MC9090-G offers advanced data capture options and integrated wireless LAN/PAN plus a comfortable ergonomic pistol grip to enable real-time data collection in scan-intensive environments ? in the warehouse, on the loading dock, out in the yard, and in the back room or out on the sales floor of a retail operation.
Integrated 802.11 a/b/g WLAN radios
Flexible always-on connection maximizes mobile worker productivity; compatible with any WLAN in the world; technology differentiating features that deliver superior, reliable wireless connectivity
Exceptionally rugged construction: passes industry's most stringent drop and tumble tests; IP64 sealing rating; integrated internal antennas
Flexibility to use in nearly any environment; dramatically reduces repair and downtime costs; delivers enterprise performance and ROI
Common Motorola mobile device platform
Maximizes the value of your applications ? and software development investment
Forward scanning, pistol grip ergonomics
Reduces user fatigue in scan intensive applications
Intel XScale PXA270 processor: 624 MHz; enhanced memory architecture for persistent storage
Supports simple to complex multimedia applications
Windows Mobile 5.0 or Windows CE 5.0
Most advanced mobile operating systems available; provides choice of familiar Windows environment or robust application-specific environment
1D Standard-range scan engine; 1D Extended-range scan engine; omni-directional imaging engine; DPM engine
Ability to select from 1D, 2D, DPM and image capture capabilities delivers maximum application flexibility; provides real-time data capture and access to business information to enable process automation, error-proofing, and track and trace capabilities
WPAN: Bluetooth v1.2
Wirelessly synchronize, print, and connect to a headset
Large display: exceptional clarity and contrast
Easy to read in a variety of lighting conditions
APPLICATION DEVELOPMENT
Application development PSDK, DCP and SMDK available through Motorola Support central web site
NOTICES AND DISCLAIMERS
Notices and Disclaimers1 See footnote
PERFORMANCE CHARACTERISTICS
Data capture options 1D standard range scan engine; 1D extended range scan engine; omni-directional imaging engine reads 1D and 2D symbols omni-directionally, and captures images and signatures; DPM engine reads a wide variety of DPM marks including data matrix marks applied by dot peening, laser etching, molding, stamping or casting methods to multiple substrates such as metal, plastic or glass
Expansion SD/MMC card
Memory (Flash/RAM) 64 MB/64 MB (Win CE); 64 MB/128 MB (Win Mobile)
Operating system (OS) Microsoft Windows CE 5.0 Core Version, Microsoft Windows Mobile 5.0 Premium
Processor (CPU) Intel? XScale? Bulverde PXA270 624 MHz processor
Windows CE yes
Windows Mobile yes
PHYSICAL CHARACTERISTICS
Dimensions (HxWxD) 7.6 x 3.6 x 9.1 in. (19.3 x 9.1 x 23.1 cm) H x W x D
Display resolution 3.8 in. QVGA mono or color (Win CE); 3.8 in. QVGA color only (Win Mobile)
Display type Backlit color
Keyboard 28, 43 and 53-key; terminal emulation (5250, 3270, VT)
Weight 25 oz. (709 g) (includes battery, scanner and radio)
POWER
Main battery Removable, rechargeable Li-Ion; 7.2 V; 2200 mAh battery pack; 15.8 Wh
REGULATORY SPECIFICATIONS
EMC EN 301 489-1, EN 301 489-7, EN 301 489-17, IEC 60601-1-2, EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
Electrical safety UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
Environmental RoHS Directive 2002/95/EEC
Laser safety2 EN 60825-1, IEC 60825-1, 21CFR1040.10
RF exposure 787,788,789,2835
Radio EN 300 328, EN 301 511, EN 301 893, FCC Part 22, FCC Part 24
USER ENVIRONMENT
Charging temperature 32? to 104? F (0? to 40? C)
Drop specification Multiple 6 ft. (1.8 m) drops to concrete the operating temperature range
Electrostatic discharge (ESD) +/- 15 kVDC air discharge; +/- 8 kVDC direct discharge; +/- 8 kVDC indirect discharge
Environmental sealing IP64 (electronic enclosure, display, keypad)
Humidity 5 to 95% non condensing
Operating temperature -4? to 122? F (-20? to 50? C)
Storage temperature -40? to 158? F (-40? to 70?)
Tumble specifications 2,000 1 m. tumbles at room temperature (4,000 hits)
WIRELESS DATA COMMUNICATIONS
Antenna Internal
Data rate 802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps
Frequency range 802.11a - 5 GHz, 802.11b - 2.4 GHz, 802.11g - 2.4 GHz
Output power 100 mW international, 100 mW US
WLAN
WPAN (Bluetooth Support) Bluetooth v1.2 with BT Explorer
1 Specifications are subject to change without notice.
NOTICE: Repairs of this product may require the use of Motorola proprietary parts (and/or Motorola proprietary information). Motorla will sell these parts (and provide this proprietary information) only to end-user customers for self-service. It is Motorola's policy not to sell these parts to third-party service providers and not to allow a third-party service provider to act as an ordering or receiving agent for the parts necessary to repair this product. Applicable in the U.S. For all other countries, please contact your Motorola account manager or the local Motorola Customer Service rep
