Thermal Mass Flow Meter for Air and Nitrogen

Thermal Mass Flow Meter for Air and Nitrogen

รหัสสินค้า :

007

ยี่ห้อ :

FLUID COMPONENTS INTL.

สภาพสินค้า :

สินค้าใหม่

ราคา :

0.00

บาท

เว็บไซต์ :

http://www.siamshop.com/6enakiu2936lj89

วันที่เริ่ม :

26 พ.ย. 2554 13:07:11

วันที่อัพเดท :

26 พ.ย. 2554 13:07:11

ip :

110.168.39.1xx

ข้อมูลร้าน

ร้าน :

Trirung Shop

ชื่อผู้ขาย :

คุณธีระชัย

จังหวัด :

นนทบุรี

จำนวนสินค้า :

12 ชิ้น

คนเข้าชม :

2149

อัพเดทร้าน :

26 พ.ย. 2554 12:22:25

เปิดร้าน :

24 ม.ค. 2554 18:54:08

shop free

รายละเอียดสินค้า

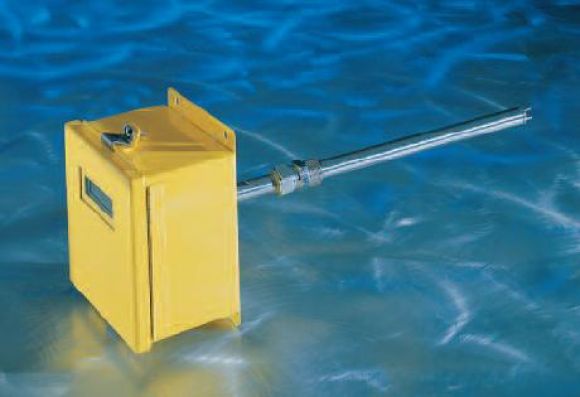

ST98B-AN Thermal Mass Flow Meter for Air and Nitrogen Thermal Mass Flow Meter ST98B-CA Thermal Mass Flow Meter Summary The ST98B-AN BASIC insertion type FlexMASSter sets a new standard for thermal mass flow meter performance, ease of use and installed value for Air or Nitrogen service. This field selectable insertion unit features an application-specific instrument package for fast ordering, simple installation and precision measurement. The ST98B-AN BASIC features FCI's popular ST98 Series innovative flow element design with leading-edge flow transmitter electronics and temperature compensation to ensure optimum performance in process temperatures that vary up to ? 100? F. It is available with all of the below listed standard features for a very attractive price and with quick delivery as soon as 5 business days ARO. Applications Monitoring air flow to burners Optimization of combustion air control systems Aeration pond monitoring Specifications Flow Range: 1.25 to 125 sfps [0.4 to 38 nmps] in Air or Nitrogen at standard conditions; 70? F [21.1? C] and 14.7 psia [1.01325 bar (a)]. Accuracy: (at calibrated conditions) ? 1% reading + 0.5% full scale Temperature Coefficient: With optional temperature compensation. Valid from 10% to 100% of full-scale calibration Flow: Maximum ? 0.015% of reading/?F up to 850?F [?0.03% of reading/?C up to 454 ?C] Repeatability: ? 0.5% reading Turndown Ratio: Factory set at 100:1 Temperature Compensation: ? 30? F [? -1? C] Temperature Range: 40? to 100? F [4? to 38? C] Pressure Range: 10 to 50 psia [0.7 to 3.4 bar(a)] Enclosure: Powder coated carbon steel rated for NEMA and CSA Type 4, water and dust tight (meets IP66). Agency Approvals: FM, CSA, CENELEC, ATEX and CE Mark. N.I.S.T. Certified Test Lab Calibration: Standard Flow Element Materials of Construction: All welded 316L stainless steel for all wetted surfaces. Process Connection: 0.75 inch male NPT stainless steel compression fitting with adjustable Teflon ferrule. Insertion Length (Field Adjustable) 1: 1 to 6 inches [25 to 152 mm] 1 to 12 inches [25 to 305 mm] Operating Temperature: Up to 200? F [93? C] Operating Pressure: Up to 150 psig [10 bar(g)] Flow Transmitter Operating Temperature: 0? to 140? F [-18? to +60? C] Input Power (Field Selectable) 2: 85 to 265 Vac or 22 to 30 Vdc; 16 watts maximum. Output Signal (Field Selectable): Current: 4 to 20 mA source; 800 ohms maximum load (with field selectable low [3.6 Ma] or high [21 mA] instrument fault indication; per NAMUR guideline NE 431). Voltage: 0 to 5 Vdc, 1 to 5 Vdc or 0 to 10 Vdc; 100,000 ohms minimum load. Digital Communication Port: RS-232C Optional Display: 2 lines, 16 characters per line. Indicates flow rate and process temperature or totalized flow (field selectable). Optional Remote Configuration: Flow Element Enclosure: Powder coated aluminum rated for NEMA Type 4X and hazardous locations Groups B, C, D, E, F and G, CENELEC EEx d IIC. Flow Transmitter Enclosure: Powder coated carbon steel rated for NEMA and CSA Type 4, water and dust tight (equivalent to IP66). Optional Interconnecting Cable: 25 ft. [7.6 m] PVC cable for remote configuration. Optional Communicator/Programmer: FCI Model FC88 Hand-held plug-in interface. Note 1: After installation, stainless steel ferrule will be permanently fixed at the installed length. Note 2: Output signal is isolated from input power on Vac powered units only.
