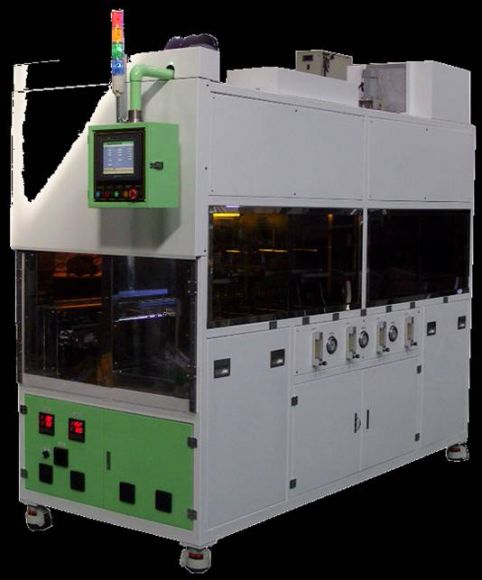

RX HARD COATING MACHINE
สภาพสินค้า :
สินค้าใหม่
ราคา :
0.00
บาท
เว็บไซต์ :
วันที่เริ่ม :
12 ก.พ. 2555 23:42:09
วันที่อัพเดท :
12 ก.พ. 2555 23:42:09
ip :
125.27.38.1xx
ข้อมูลร้าน
ร้าน :
ชื่อผู้ขาย :
คุณธันย์
จังหวัด :
ชลบุรี
จำนวนสินค้า :
5 ชิ้น
คนเข้าชม :
932
อัพเดทร้าน :
16 ก.พ. 2555 00:04:02
เปิดร้าน :
12 ก.พ. 2555 23:10:19
รายละเอียดสินค้า
Model : RX-200H, RX-400H, RX-800H
Object : Lens cleaning and Hard Coating
Technical Specification
- Electricity : 220/380V x 1P/3P x 50/60Hz
- Total power rating : 10kw/hr(Installed power)
- Control Panel : Touch Screen
- Drive Type of Coating : 2 axis robot
- Consumption of supply water : 15A PIPE female connection.
(Q=max. 3L/min, Pressure=min. 2kgf/cm2)
- Ventilation with filtration : Volume: 4m3/min
- Air Pressure : 5kg/cm2
Dimensions & Weight
- Overall size : 2800 mmL x 1250 mmW x 2300 mmH
- Weight : approx. 700kg
Capacity of Lenses
- Number of Lenses/rack : 10EA/rack (5pairs/rack)
- Cycle time : 4~5minute/rack (adjustable)
- Lenses per hour : 120EA/Hr max. theoretical
- Lenses per 8 hour day : 800EA/day approximate
Applicable Lens type
- CR-39
- Middle Index, Hi-index,
