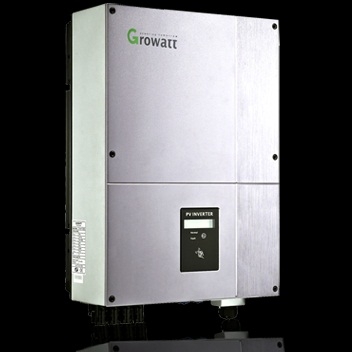

Growatt 5000MTL-10

                  Model
Specifications

Growatt 3600MTL

Growatt 4200MTL

Growatt 5000MTL

Input data

Max. DC power

3800W

4400W

5200W

Max. DC power each MPPT tracker

2000W

2500W

3000W

Max. DC voltage

600V

600V

600V

PV voltage range MPPT

120V-600V

120V-600V

120V-600V

Full load voltage

190V-580V

190V-580V

190V-580V

Max. number of parallel strings

2/2

2/2

2/2

Number of MPP trackers

2(Can parallel)

2(Can parallel)

2(Can parallel)

MPPT input current

10A/10A

15A/15A

15A/15A

Max. input current

10A/10A

15A/15A

15A/15A

Output (AC)

Nominal AC output

3600W

4200W

4600W/5000W

Max. AC power

3600W

4200W

4600W/5000W

Nominal output current

15.6A

18.5A

20A

Max. output current

18A

21A

25A

AC voltage range

220V/230V/240V
180Vac-280Vac

220V/230V/240V
180Vac-280Vac

220V/230V/240V
180Vac-280Vac

AC grid frequency range

50Hz,60Hz/±5Hz

50Hz,60Hz/±5Hz

50Hz,60Hz/±5Hz

Phase shift (cosφ)

1

1

1

THDI

<3%

<3%

<3%

AC connection

Single phase

Single phase

Single phase

Efficiency

Max. efficiency

97.6%

97.9%

97.9%

Euro - eat

97%

97.4%

97.4%

MPPT efficieny

99.5%

99.5%

99.5%

Protection devices

DC reverse polarity protection

yes

yes

yes

AC short - circuit protection

yes

yes

yes

Ground fault monitoring

yes

yes

yes

Grid monitoring

yes

yes

yes

Integrated all - pole sensitive
leakage current monitoring unit

yes

yes

yes

General Data

Dimensions (W / H / D) in mm

360/510/188

360/510/188

360/510/188

Weight

24KG

24KG

24KG

Operating temperature
range

–25°C ... +60°C

–25°C...+60 °C

–25°C ... +60°C

Continuous full output power
temperature range

–25°C... +50 °C

–25°C...+50 °C

–25°C ... +50°C

Noise emission (typical)

≤ 25 dB(A)

≤ 25 dB(A)

≤ 25 dB(A)

Altitude

Up to 2000m without power derating

Consumption: operating
(standby) / night

Topology

transformerless

transformerless

transformerless

Cooling concept

No fan

No fan

No fan

Installation: Indoors /
Outdoors (IP65 electronics )

yes /yes

yes /yes

yes /yes

Features

DCconnection:(MC3/MC4/H4)

opt/opt/yes

opt/opt/yes

opt/opt/yes

AC connection: Terminals

yes

yes

yes

LCD display

yes

yes

yes

Interfaces: Bluetooth /
RS485/RS232

opt/yes/yes

opt/yes/yes

opt/yes/yes

Warranty: 5 years / 10 years

yes /opt

yes /opt

yes /opt

Certificates and approvals

VDE 0126-1-1,IEC 62109,RD 1663,G83
EN 61000-6-1,EN61000-6-2 ,EN61000-6-3,EN61000-6-4
AS4777, SNZ AS NZS 3100
