Solvent recycle

รายละเอียดสินค้า

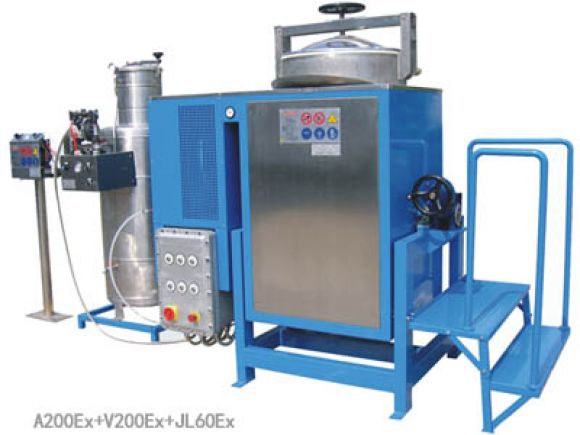

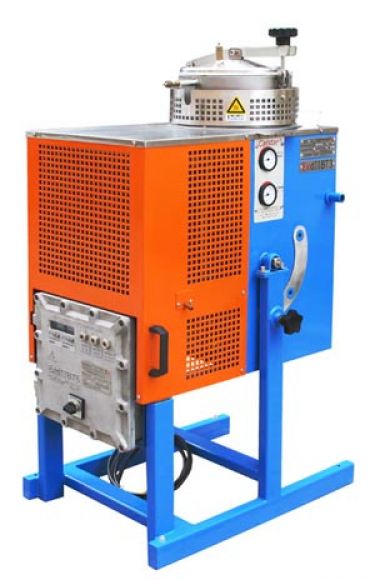

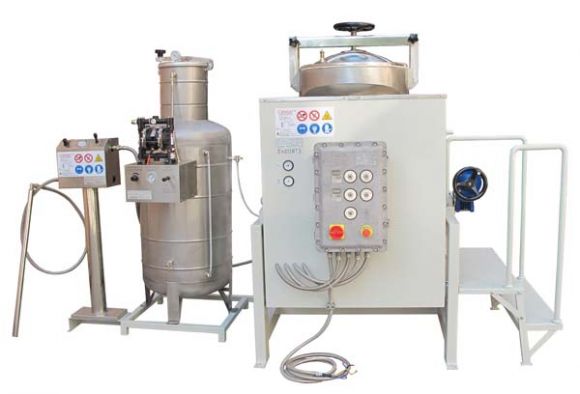

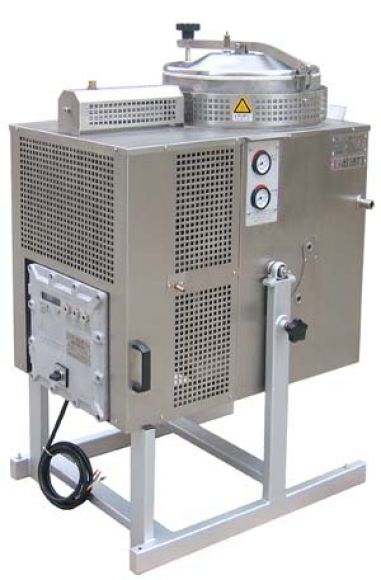

Our products, all types of solvent recycle machine, uses the distillation principle, separates the original solvent(like thinner, toluene, methanol, hydrocarbon, xylene, ethyl acetate, ethyl alcohol, acetone, NPA, hexane, chloride, IPA, hplc, nylosolv) from the contaminants(like ink, paint, grease, pigments, resin (non-volatile share)) to allow its re-use. Series "A" Solvent Recovery Systems 1. Air-cooling condensing system 2. Dumping slag-off or special distillation bags slag-off 3. Explosion-proof 4. Color monitor NC or heating temperature control external knob 5. Stainless steel outer case or carbon steel and surface coating outer case 6. stainless steel recovery tank 7. Set temperature shutdown function 8. Timing shutdown function 9. Over heating protection function 10. Over pressure protection 11. Power failure protection function Series "B" Solvent Recovery Machines 1. Water-cooling condensing system 2. Underneath slag-off or special distillation bags slag-off 3. Explosion-proof 4. Color monitor NC or heating temperature control external knob 5. Stainless steel outer case or carbon steel and surface coating outer case 6. stainless steel recovery tank 7. Set temperature shutdown function 8. Timing shutdown function 9. Over heating protection function 10. Over pressure protection 11. Power failure protection function Series "A-V" Solvent Recyclers (3 in 1) 1.A 24-hour automatic cycle operation functions 2. Vacuum decompression recovery features 3. Automatic feeding and automatic cleaning residue functions 4. Air-cooling condensing system 5. Underneath slag-off or special distillation bags slag-off 6. Explosion-proof 7.Color monitor NC or heating temperature control external knob 8. Carbon steel and surface coating outer case 9. Stainless steel recovery tank 10. Set temperature shutdown function 11. Timing shutdown function 12. Over heating protection function 13. Over pressure protection 14. Power failure protection function Solvent Recycling Machine Solvent Recycling Machine are distillers which allow the recycling and the re-use of degreasing and washing solvents.Through a simple distillation process, they separate the contaminants (resins, polymers, pigments, paints, oils, etc.) from the original solvent.The boiling of the solvent is accomplished by a peripheral heating jacket filled with diathermic oil, heated by an electrical element. The vapours are then convoyed to a condenser cooled by air or water. The condensed solvent is collected in a tank, for its reuse. Used for: Calstar Solvent Recycling Machine is used for recovery the waste solution resulting from the following: automobile manufacturing and repair industry; electronic products manufacturing industry; precision instruments and hardware manufacturing industry; sports equipment manufacturing industry; shoe material industry; plastic materials; printing industry; manufacture of chemical coatings; FRP products industry; jewelry industry; optical products; furniture manufacturing industry etc.
