รายละเอียดสินค้า

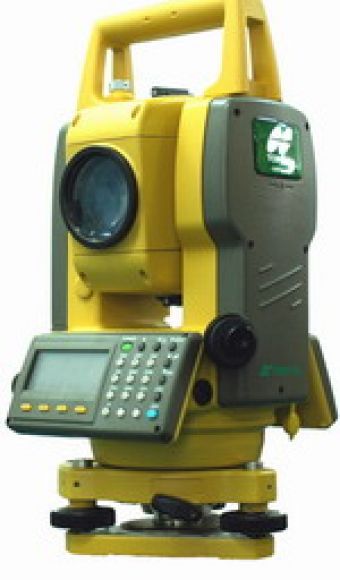

TOPCON GTS-102N Serie Accuracy 2 " The Topcon GTS-102N Series are the innovative successor to the best selling GTS-102N Series Total Stations. The GTS-102N Series with "Waterproof" design brought revolution to the surveying industry with new features and durability. Now the new Topcon GTS-102N Series Total Stations have up-grades to their basic functions for distance and angle measurement whilst still maintaining superb durability against the environment. Superior Basic Function for measuring distance & angle The Topcon GTS-102N Series Total Stations are provided with a distance measuring range of 2,000m (9,900ft) to a single prism which is superior to other total stations in their class 1 prism), while maintaining high accuracy (2mm+ 2ppmxD) m.s.e). As for distance measuring time, data updates at a high rate speed of 1.2 seconds in the fine measurement mode. (0.7 seconds in the coarse mode, and 0.4 seconds in the tracking mode). This shorter distance measurement time will allow you to increase your efficiency and productivity in the field. Increased Internal Memory for Data Storage The Topcon GTS-102N Series has enough internal memory to store up to 24,000 points for data collection and layout work. Due to this substantial memory capacity, you do not need to worry about memory storage. Dual-Axis Compensator Dual-axis compensation is available for Topcon GTS-102N model. This dual-axis tilt sensor automatically corrects the vertical and horizontal angle compensation for miss-leveling error. 24 key keyboard The new Topcon GTS-102N has a 24 key Numeric keyboard build in on both sides. This 24 key keyboard makes it easier and quicker to key in codes and other alpha or numeric fields. Compact and Light Weight The Topcon GTS-102N Series is compact and weigh's only 4.9 kg (10.8 pounds), (instrument body with on-board battery and handle grip). Due to this small size and weight you can easily transport to and around the job site. Waterproof to IP66 standard The Topcon GTS-102N Series Total Stations stand up to any wet weather condition that occurs in the field, giving the great benefit of not experiencing down time due to bad weather. The waterproof-ness (IP66) of the Topcon GTS-102N Series assure durable performance in the field under all conditions as an "All Weather" Total Station. Easy to use The layout of keyboard and display are clear and ensure easy operation. The menu driven software is easy to learn, intuitive and uses a complete range of surveying and setting out routines. The Topcon GTS-102N have 2 side display and keyboard on one side. Contract Us : 0-2977-1036-7 Hot Line : 081-910-6368 Hot Line : 081-811-3261
