เครื่องวัดอัตราการไหลของของเหลวชนิดอัลตร้าโซนิค Handheld Ultrasonic Flowmeter LRF-2000H

เครื่องวัดอัตราการไหลของของเหลวชนิดอัลตร้าโซนิค Handheld Ultrasonic Flowmeter LRF-2000H

รหัสสินค้า :

0001

ยี่ห้อ :

LONGRUN

สภาพสินค้า :

สินค้าใหม่

ราคา :

0.00

บาท

เว็บไซต์ :

http://trirung.siamshop.com

วันที่เริ่ม :

21 ส.ค. 2555 19:26:13

วันที่อัพเดท :

19 ก.ย. 2555 17:26:05

ip :

124.122.203.1xx

ข้อมูลร้าน

ชื่อผู้ขาย :

ธีระชัย หลำเนียม

จังหวัด :

นนทบุรี

จำนวนสินค้า :

2 ชิ้น

คนเข้าชม :

1896

อัพเดทร้าน :

19 ก.ย. 2555 17:22:41

เปิดร้าน :

21 ส.ค. 2555 18:37:30

shop free

รายละเอียดสินค้า

เครื่องวัดอัตราการไหลของของเหลวแบบพกพาชนิดอัลตร้าโซนิค

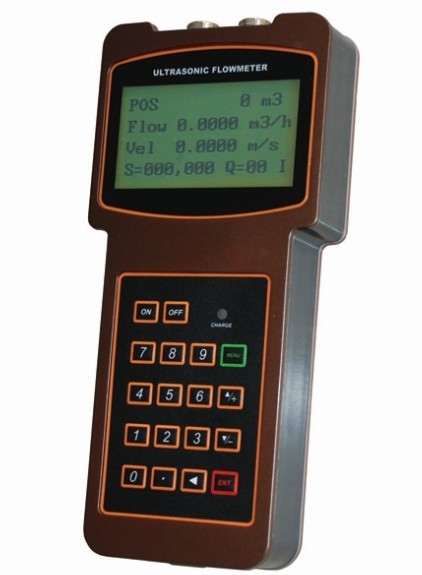

Handheld Ultrasonic Flowmeter / LRF-2000H

  • LRF-2000H handheld ultrasonic flow meter is small, light, and easy to operate. Installation is non-intrusive. Rechargeable battery supports more than 12 hours of continuous work.



Features

•  High Accuracy measuring
   Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%

•  Non-intrusive measuring
   Non-intrusive, clamp-on transducer, no pressure drop,no pipe disturbance

•  Wide measuring range
    Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm

•  Light weight
   Size: 210×90×30mm, weight: only 0.5kg

•  Large capacity battery
    Built-in rechargeable Ni-MH battery, provide over 12 hours of continuous operation

•  Large LCD display
   Display instantaneous flow, accumulated flow (positive, negative and net), velocity, working status etc

•  Built-in data logger
   Built-in 24K data logger, store over 2000 lines measuring data

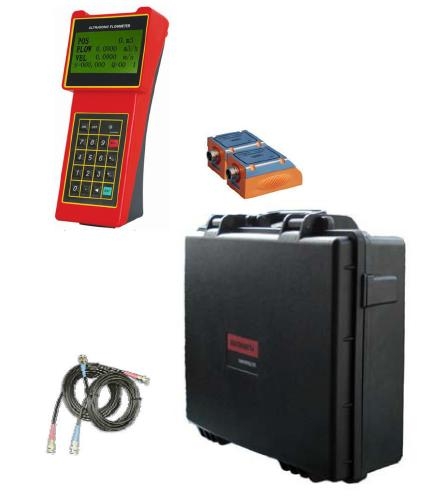

Standard configuration

1 pcs, Size: 225x90x60mm, Working temperature: -20-60C°, Measuring accuracy: ±1%

2 pcs (magnetic), Size: 64x35x32mm, Working temperature: -40-110C°, Measuring Range: DN50-DN1000mm

2x5m, for connecting flowmeter and transducer

1x1m, for charging flowmeter

 1 pcs, Size: 456 x 355 x 133mm,

Main Unit

    Medium transducer

             TM-1

Signal Cable

Adapter

Carrying case

 2x3m, Maximum tension: 100kg, for binding transducer to non-magnetic pipe.

1x3m, For measuring the distance between transducers or pipe perimeter

Length: 1m, for data transmission.

 1 pcs

1x110g, For signal transmission between transducers and pipe wall.

Stretcher

Tape ruler

Data line

User Manual

Ultrasonic coupling agent

Optional Transducer

Small size transducer TS-2(Magnetic)
DN15 ? DN100mm
-40C° ∼ 90C°

Medium size transducer TM-1(Magnetic)
DN50 ? DN700mm
-40C° ∼ 90C°

Large size transducer TL-1(Magnetic)
DN300 ? DN6000mm
-40C° ∼ 90C°



High-temperature small size transducer HTS-1
DN15 ? DN100mm
-40C° ∼ 160C°

High-temperature medium size transducer HTM-1
DN50 ? DN1000mm
-40C° ∼ 160C°



General Specifications

Items

Specification

Linearity

 0.5%

Repeatability

 0.2%

Accuracy

 Better than ±1% ? for velocity above 0.03m/s

Response Time

 0-999 second, user-configurable

Flow Range

 ±32m/s

Measuring Pipe Size

 15mm ? 6000mm

Units

 English (U.S.) or metric

Totalizer

 7-digit totalizer for net, positive and negative flow respectively

Liquid Types

 Any single uniform liquid which can transmit ultrasonic

Security

 Setup values Modification Lockout. Access code needs unlocking

Display

 4×16  letters

Communication Interface

 RS-232 interface. 75-57600bps, compatible with Fuji ultrasonic
 flowmeter and other UFM on enquiry.

Transducers

 Model TM-1 for standard, other 4 models for optional

Transducer Cable

 Standard 5mx2 or can be extended to 10m x 2

Power Supply

 3 AAA built-in Ni-MH batteries (for over 12 hours of operation).
 100V-240VAC adapter

Data Logger

 Built-in data logger can store over 2000 lines of data

Manual Totalizer

 7 digit, calibrating by key

Housing Material

 ABS

Size

 210×90×30mm

Handset Weight

 500g (include battery)
